My projects...
Mes projets...


May  2024.

You all know this picture.

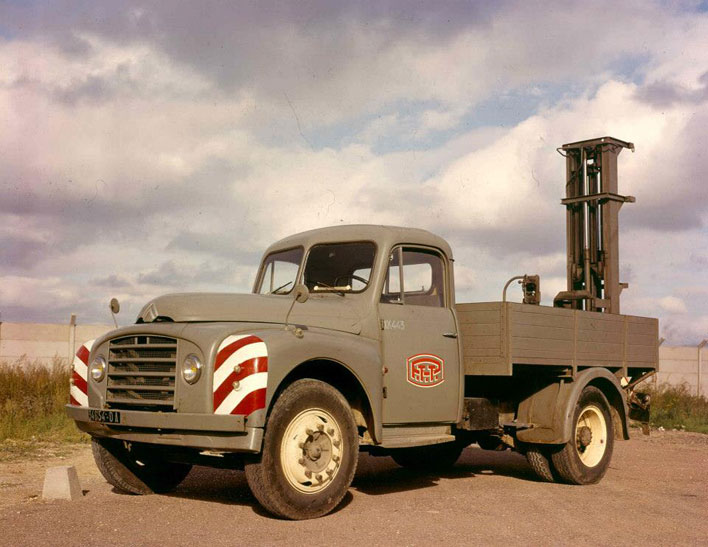

A Type 55 on a short chassis, with something mounted on the back end.

A new challenge.


Mai 2023.

Tout le monde connait cette photo.

Un Type 55 sur chassis court, avec quelque chose installé à l'arrière.

Un nouveau défi.

The only thing we know is that the truck was in use by the PTT. But what was it used for? What's the installation on the back?
I started searching, which wasn't easy because my knowledge of the French language is limited. Which words to use to let Google know what we're looking for?
I did find two pictures of the truck, showing it in use. It's a machine to drill holes in the ground to hold telephone poles. Simple once you know it.
Another difficulty was how to download and save these pictures. Obviously it wasn't ment to be.
Finally I found pieces of the pictures in the cache memory of my browser, and used PhotoShop to put them together, like a jig saw puzzle.


La seule chose que nous savons, c'est que le camion était utilisé par le PTT. Mais à quoi servait-il ? Quelle est l'installation à l'arrière ?
J'ai commencé à chercher, ce qui n'a pas été facile car ma connaissance de la langue française est limitée. Quels mots utiliser pour faire savoir à Google ce que nous recherchons ?
J'ai trouvé deux photos du camion, le montrant en cours d'utilisation. C'est une machine qui permet de percer des trous dans le sol pour contenir des poteaux téléphoniques. Simple une fois qu'on le sait.
Une autre difficulté était de savoir comment télécharger et sauvegarder ces images. De toute évidence, ce n’était pas une bonne chose.
Finalement, j'ai trouvé des morceaux d'images dans la mémoire cache de mon navigateur et j'ai utilisé PhotoShop pour les assembler, comme un puzzle.


As usual I'll use a Type 55 Cattletruck (Bétallière) from Ixo. I have shortened these chassis before, so no problem here. The chassis is a short one, 3,60 m.

Comme d'habitude j'utiliserai un Type 55 Bétallière de chez Ixo. J'ai déjà raccourci ces châssis, donc pas de problème ici. Le châssis est court, 3,60 m.

I designed and 3D printed a subchassis, fenders and a platform. This was all fairly easy.


J'ai conçu et imprimé en 3D un sous-châssis, des ailes et un plateau. Tout cela était assez simple.


June 2024:
Since there are no drawings of the installation, I have to guess its measurements, design and print something, try it and throw it away. I think it's called trial & error...
The square blocks are there temporary, to hold parts together without glue.
Notice the rear window. It was made a bit bigger, like the real truck.


Juin 2024:
Comme il n'y a pas de plans de l'installation, je dois deviner ses dimensions, concevoir et imprimer quelque chose, l'essayer et le jeter. Je crois que c'est ce qu'on appelle des essais et des erreurs...
Remarquez la lunette arrière. Elle a été agrandie un peu, comme le vrai camion.

Some small parts were designed and printed. It's still a lot of guessing what the right size of things should be. The height of the mast can be determined by the length of the platform.

Quelques petites pièces ont été conçues et imprimées. Il reste encore beaucoup à deviner quelle devrait être la bonne taille des choses. La hauteur du mât peut être déterminée par la longueur de la plateforme.

I decided to fix the mast in the upright position. It's too difficult to make it movable, because then I would have to make the cylinders at the bottom of the mast, which move the mast in real life, work.

J'ai décidé de fixer le mât en position verticale. C'est trop difficile de le rendre mobile, car il faudrait alors faire fonctionner les vérins en bas du mât, qui déplacent le mât dans la vraie vie.

Here you can see all the 3D printed parts on the Tinkercad workplane. Construction work is nearly ready now, time for painting.

Ici vous pouvez voir toutes les pièces imprimées en 3D sur le plan de travail Tinkercad. Les travaux de construction sont presque terminés, il est temps de peindre.

We're getting there. Did some painting and put all parts in place. I designed the decals and had them printed.

Nous y arrivons. J'ai fait un peu de peinture et mis toutes les pièces en place. J'ai conçu les décalcomanies et je les ai fait imprimer.

A large box was added on the platform floor. Everything was painted. Some aluminium tubes were placed inside the installation. And the operator of the installation was added. The model was placed on a kind of home made diorama. The drilling can be seen clearly.

Une grande boîte a été ajoutée au sol de la plate-forme. Tout était peint. Quelques tubes en aluminium ont été placés à l'intérieur de l'installation. Et l'opérateur de l'installation a été ajouté. Le modèle a été placé sur une sorte de diorama fait maison. Le forage est clairement visible.
